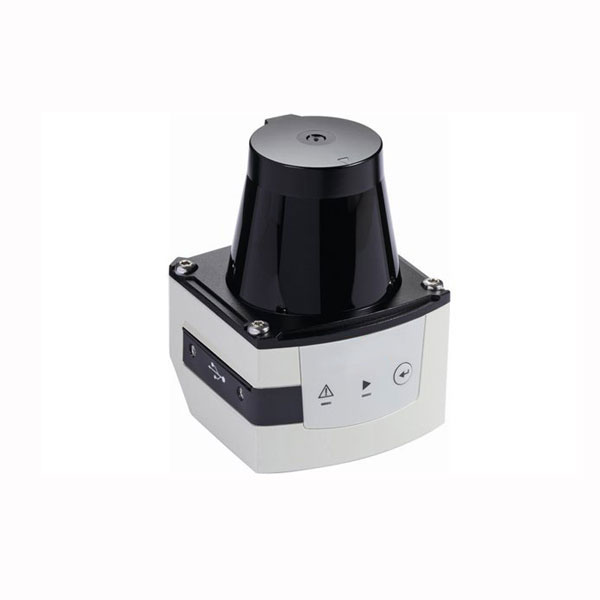

LSE-15-S

Laser scanning sensor for outdoor.

Range 8m radius (16m diameter) with 10% reflectance (limit range 10m - 20m diameter)
Scan angle 270 °
1° angular resolution

Measurement frequency 15Hz
905nm laser source
Measurement error +/- 60mm
Response time 67ms

Ethernet interface
4 digital inputs
16 sets of configurable areas, each with 3 areas
Configurable evaluation strategies
"Contour" function management 3 digital outputs

Power supply 10-30Vdc, 3W
Operating temperature range -25 + 50 ° C
Small size, 86x61x61mm, weight 250Kg
White color (RAL9003).
