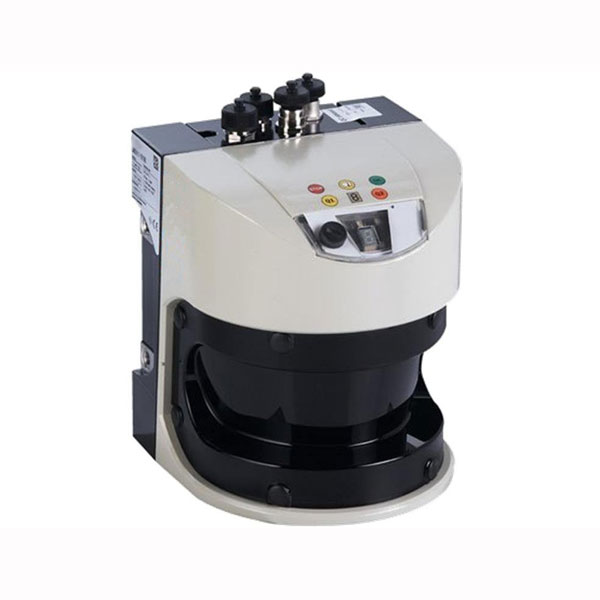

LSE-30-S

Laser scanning sensor for outdoor.

Range 40m (80m diameter) with 10% reflectance (limit range 80m - diameter 160m)
Scan angle 190 °
Angular resolution 0.25 °, 0.5 °, 1.0 °

Double echo technology
Measuring frequency 25Hz, 35Hz, 50Hz, 75Hz
905nm laser source
Measurement error +/- 50mm
Response time 13ms

Ethernet interface
2 digital inputs
4 adjustable alarm areas
4 event evaluation strategies
3 outputs (of which 2 relays)

Power supply 24Vdc, 22W (+ 43W per heater)
Operating temperature range -30 + 50 ° C
Dimensions 160x155x185mm, weight 3.7Kg
Light gray color (RAL7032).
